Machine Features

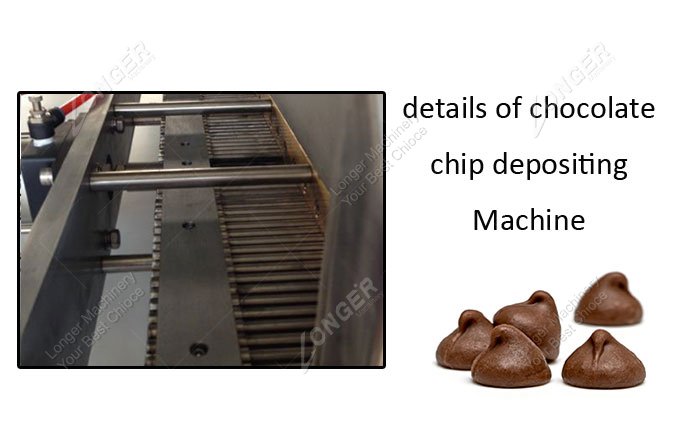

Introduction of Chocolate Chip Depositing Machine:
We are chocolate chip depositing machine supplier in China.The chocolate chip depositing machine with high efficiency machine is a special equipment for producing small granular chocolate raw products. It is directly poured from the drop-shaped chocolate on the PU conveyor belt, and is cooled by the cooling channel through the conveyor belt.The machine has the characteristics of convenient control and operation,wide range and large production capacity.Depending on the quality of the chocolate, the weight of the chocolate chip and the temperature, the chocolate chips can be button-shaped or dome-shaped.
Advantages of Chocolate Chip Depositing Machine:
1.The size and weight of the chocolate chips can be adjusted in the machine according to your requirements.
2.The chocolate chip depositing machine consists of a depositor and a cooling tunnel. Real chocolate and composite chocolate can be made on this machine.
3.It is controlled by PLC with touch screen, so it is more accurate.
4.The material in contact with the chocolate is made of stainless steel or aluminum alloy, except that the conveyor belt is made of PU. The insulating plate can also be stainless steel. The rack, insulation board and other components are ss304.
Operation notes of Chocolate Chip Depositing Machine:
1.When connecting the voltage, connect the rotation direction indication as required. Don't reverse it; if it's not indicated, feel free to visit.
2.Before operating the chocolate chip depositing machine, carefully check the various parts of the machine for any problems. If problems are found, repair them in time.
3.The chocolate chip depositing machine should be cleaned up in time after use, which is convenient for next use.
4.Do not directly touch the materials in the machine during operation to avoid danger. It can be done by tools and can be stopped if necessary.
5.Pay attention to the safe use of electricity during the operation of the chocolate chip depositing machine to prevent electric shock.
Our service for Chocolate Chip Depositing Machine:
1.Most of the engineers at our factory have more than 10 years of experience in making chocolate machines.
2.Each new chocolate chip depositing machine will be tested 24 hours before shipment.And we will ship the machine after re-accepting your acceptance.
3.We can provide you with the best advice and help for the chocolate business.
4.We not only provide you with the best chocolate chip depositing machine, but also provide overseas installation and commissioning.
5.Our chocolate chip depositing machine is guaranteed for one year. We are responsible for the machine during the warranty period. If there is any problem with the machine, we will provide technical support.
If you are looking for the chocolate chip depositing machine,then you can contact me!
Machine Technical Data
Technical Parameter |
LGTYJ400 | LGTYJ600 | LGTYJ800 | LGTYJ1000 | LGTYJ1200 |
Conveyor Belt Width(mm) |
400 |
600 | 800 | 1000 | 1200 |
Depositing Speed (times/min) |
0-20 |
0-20 | 0-20 | 0-20 | 0-20 |
Single Grain Weight(℃) |
0.1-3 |
0.1-3 | 0.1-3 | 0.1-3 | 0.1-3 |
Cooling Tunnel Temperature(℃) |
0-10 |
0-10 | 0-10 | 0-10 | 0-10 |
Machine Length(m) |
10-30 |
10-30 | 10-30 | 10-30 | 10-30 |
